This Defend IR is a 2-inch console-mounted security system that protects your patrol vehicle when you’re not in it. Once the ignition is off and the cabin stops moving, the system arms itself. If someone reaches in or breaks in, the infrared sensor trips and fires the lights and siren to scare off the threat and alert nearby officers.
The system needs no officer input. You pick the arming delay, trigger delay, and siren time using simple DIP switches. A disable mode lets fleet and radio shops work on the vehicle without setting off alarms.
It fits any standard 2-inch faceplate and ties directly into battery, ignition, siren, and light circuits.
Key features
- Automatic vehicle security with infrared motion detection
- Arms itself after ignition is off and cabin is still
- Triggers lights and siren when movement is detected
- 2" faceplate keeps controls easy to reach
- Adjustable arming delay, trigger delay, and siren duration
- Works with major emergency light and siren controllers
- Red/blue LEDs show armed status
- Solid red LED + beeps warn before activation
- Disable mode for shop or fleet work
- Uses standard +12V DC wiring
- Built for patrol vehicles that need constant protection
| Faceplate size | Input voltage |
|---|---|
| 2" | 9–18V DC (negative ground) |
Specifications
- Faceplate size: 2""
- Input voltage: 9–18V DC (negative ground)
- Reverse voltage protection: Yes
- Current draw: 10 mA
- Max input current (A+): 3.0 A
- Max input current (IGN): 3.0 A
- Operating temperature: 0°F to 160°F (-18°C to 71°C)
-
Outputs:
- OT1 (siren): 2.5A max @ 13.6V
- OT2 (lights): 2.5A max @ 13.6V
- IGO (ignition out): 2.5A max @ 13.6V
-
Adjustable timing:
- Arming delay: 23 / 60 / 90 / 120 sec
- Trigger delay: 10 / 20 / 30 / 40 sec
- Siren duration: 30 / 60 / 90 / 120 sec
- Sensor: Infrared cabin motion
- Alarm pattern: Increasing beeps + solid red LED
Compatibility
Fits any standard 2-inch console faceplate.
Works with most patrol vehicles:
- SUVs
- Sedans
- Trucks
Integrates with major controller systems:
- Code 3 Z3 Matrix
- Federal Signal Smart Siren Platinum, Pathfinder
- SoundOff nErgy 400 Series
- Whelen CenCom, Cantrol
Console compatibility:
- Contour consoles
- Modular consoles
- Vehicle-specific consoles
- Electrical:Requires a 12V DC negative-ground system

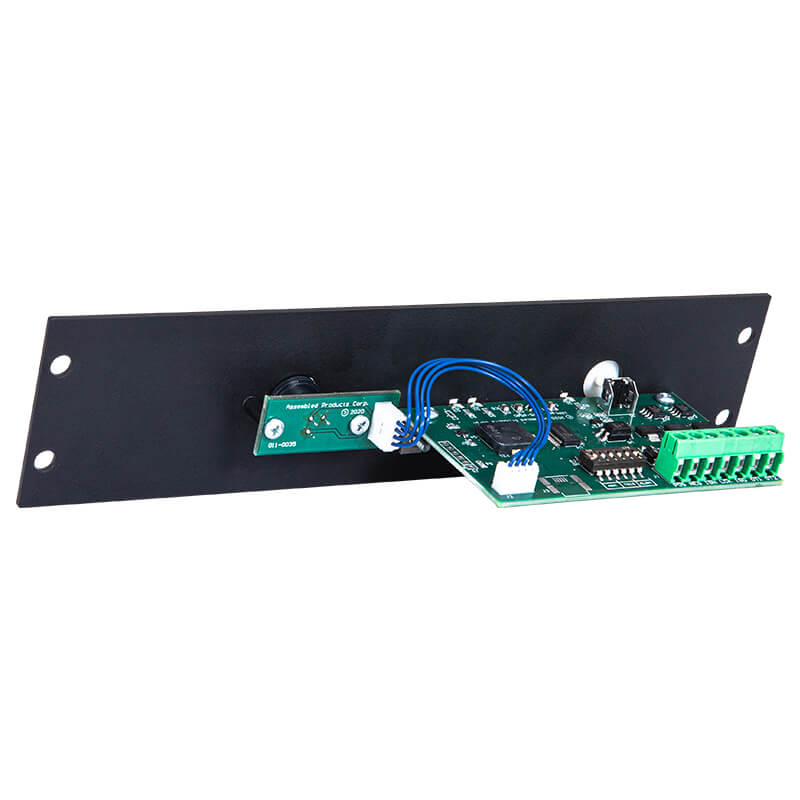

Console accessory – Defend IR security solution faceplate (2")
