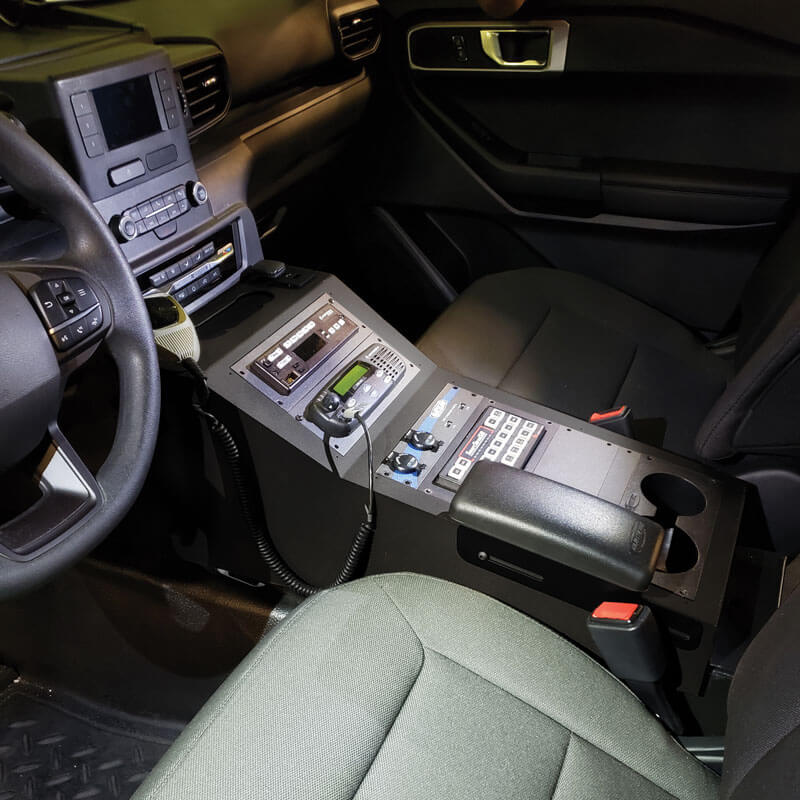

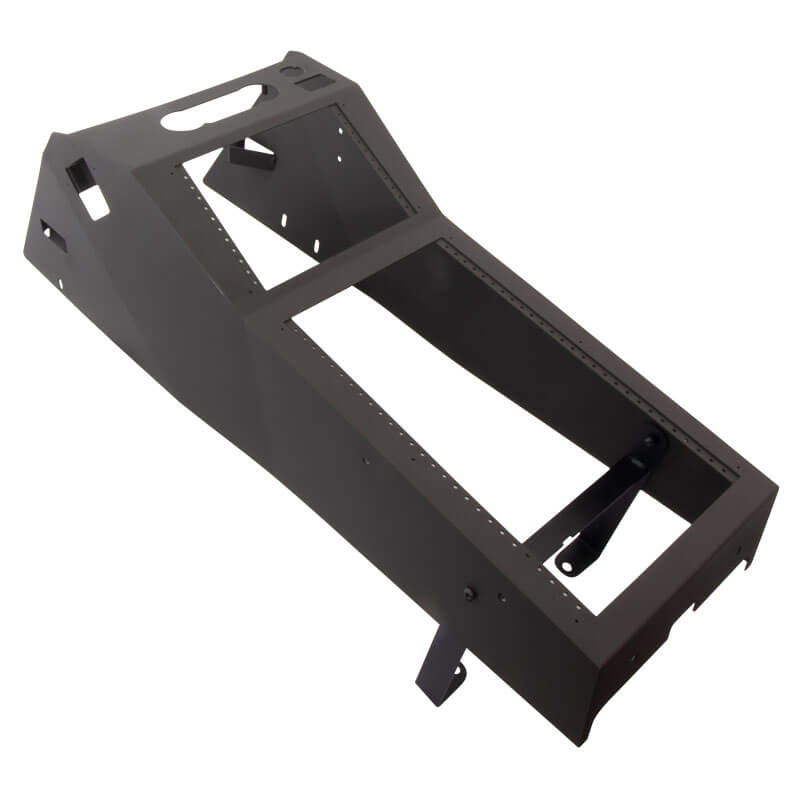

The 20" Horizontal Contour Console for the Ford Police Interceptor Utility (2020+) is a vehicle-specific front console designed for law enforcement and public safety vehicles that require flexible equipment placement and increased mounting depth.
With a 20-inch console capacity, this console is engineered to hold and support a wide range of radio, lighting, and communications equipment. The layout combines a 6" vertical faceplate opening with a 14" horizontal faceplate opening, providing multiple mounting zones and a 7-degree viewing angle for improved visibility and access.
The console offers expanded mounting depth to accommodate deeper components, with over 11.5 inches of depth at the top tapering to approximately 4 inches at the bottom. It installs using OEM mounting points beneath the factory sensor cover plate and relocates key OEM components—including USB/12V power inputs, parking brake, and rear air controls—into the console for improved usability.
Designed to integrate cleanly with the PI Utility interior, this console mirrors OEM trim and serves as the base console system for compatible mounts and accessories.
Key Features
- 20" console capacity for flexible equipment layouts
- Vehicle-specific horizontal contour for Ford PI Utility (2020+)
- Dual mounting zones with vertical and horizontal faceplate openings
- Optimized viewing angle for front-mounted equipment
- Expanded mounting depth for deeper components
- Relocates OEM USB/12V power, parking brake, and rear air controls
- Uses OEM mounting points for secure installation
- No drilling required
- OEM-matched trim for a clean, integrated appearance
- Built for durability in daily patrol and fleet use
| Console Capacity | Vehicle Compatible |
|---|---|
| 20" | Ford PI Utility (2020+) |
This contour console is engineered specifically for the Ford Police Interceptor Utility (2020+). It installs beneath the OEM sensor cover plate and integrates directly with factory mounting points to provide a secure and ergonomic equipment mounting solution.
With a 20-inch console capacity, the console functions as the foundation for duty-specific layouts that require both equipment density and increased mounting depth.
Note: Installation requires the OEM cover plate.
Compatible Console Accessories & Mounting Options (Sold Separately)
The following accessories and mounts are designed to work with this 20" contour console, depending on configuration:
- 425-0150 / 4138 — Mamba Mount
- 425-0150 / 4139 — Mamba Mount
- 425-5542 / 4143 — Console Side Mount
- 425-5542 / 5215 — Console Side Mount
- 425-5010 / 4143 — No-Holes Computer Mount
- 425-5010 / 5215 — No-Holes Computer Mount
- 425-2250 — Side Sliding Armrest
- 425-6260 — Armrest – Upper Structure
- 425-6729 — Dual Cup Holder Face Plate Mount
- 425-3816 — Magnetic Microphone Mount
Additional console accessories designed for 20-inch contour consoles may also be used based on department requirements.
Contour Console – 20" – Horizontal Contour (FORD PI UTILITY 2020+)
Description
The 20" Horizontal Contour Console for the Ford Police Interceptor Utility (2020+) is a vehicle-specific front console designed for law enforcement and public safety vehicles that require flexible equipment placement and increased mounting depth.
With a 20-inch console capacity, this console is engineered to hold and support a wide range of radio, lighting, and communications equipment. The layout combines a 6" vertical faceplate opening with a 14" horizontal faceplate opening, providing multiple mounting zones and a 7-degree viewing angle for improved visibility and access.
The console offers expanded mounting depth to accommodate deeper components, with over 11.5 inches of depth at the top tapering to approximately 4 inches at the bottom. It installs using OEM mounting points beneath the factory sensor cover plate and relocates key OEM components—including USB/12V power inputs, parking brake, and rear air controls—into the console for improved usability.
Designed to integrate cleanly with the PI Utility interior, this console mirrors OEM trim and serves as the base console system for compatible mounts and accessories.
Key Features
- 20" console capacity for flexible equipment layouts
- Vehicle-specific horizontal contour for Ford PI Utility (2020+)
- Dual mounting zones with vertical and horizontal faceplate openings
- Optimized viewing angle for front-mounted equipment
- Expanded mounting depth for deeper components
- Relocates OEM USB/12V power, parking brake, and rear air controls
- Uses OEM mounting points for secure installation
- No drilling required
- OEM-matched trim for a clean, integrated appearance
- Built for durability in daily patrol and fleet use
Specifications & Compatibility
| Console Capacity | Vehicle Compatible |
|---|---|
| 20" | Ford PI Utility (2020+) |
This contour console is engineered specifically for the Ford Police Interceptor Utility (2020+). It installs beneath the OEM sensor cover plate and integrates directly with factory mounting points to provide a secure and ergonomic equipment mounting solution.
With a 20-inch console capacity, the console functions as the foundation for duty-specific layouts that require both equipment density and increased mounting depth.
Note: Installation requires the OEM cover plate.
Compatible Console Accessories & Mounting Options (Sold Separately)
The following accessories and mounts are designed to work with this 20" contour console, depending on configuration:
- 425-0150 / 4138 — Mamba Mount
- 425-0150 / 4139 — Mamba Mount
- 425-5542 / 4143 — Console Side Mount
- 425-5542 / 5215 — Console Side Mount
- 425-5010 / 4143 — No-Holes Computer Mount
- 425-5010 / 5215 — No-Holes Computer Mount
- 425-2250 — Side Sliding Armrest
- 425-6260 — Armrest – Upper Structure
- 425-6729 — Dual Cup Holder Face Plate Mount
- 425-3816 — Magnetic Microphone Mount
Additional console accessories designed for 20-inch contour consoles may also be used based on department requirements.
