The Universal Flat Floor Mount Laptop Mount is a heavy-duty, free-standing solution designed for vehicles and work environments where a seat bolt mount is not available or practical.
This system uses a flat floor-mounted base with dual adjustable tripod-style support braces, creating a highly stable platform across uneven, angled, or flat surfaces. It is ideal for utility vehicles, service trucks, vans, and specialty applications requiring flexible installation.
The mount features a telescoping height-adjustable stand and a fully articulated swing arm, allowing complete positioning control. The desktop rotates 360° and adjusts for ergonomic viewing.
The patented ABS Cable-Dock™ system securely holds laptops while allowing airflow and shock absorption for reliable use in mobile environments.
Key Mount Features
- Universal flat floor mount design (not vehicle-specific)
- No Holes base design for structural strength
- Tripod-style dual support braces for maximum stability
- Mounts to flat, angled, or vertical surfaces
- One-piece steel base increases rigidity and frees legroom
- Telescoping height-adjustable stand
- Articulated swing arm with full positioning range
- 360° rotation at both desktop and arm
| Height Range | Swing Arm |
|---|---|
| 24 3/4" – 33 1/4" | 13 3/8" |
Mount Type:
- Flat Floor Mount – Universal
Vehicle Fit:
- Universal (Cars, Vans, Trucks, Utility Vehicles)
Height Range:
- 24 3/4" – 33 1/4"
Swing Arm:
- Size: 1" square x 13 3/8"
- Material: Solid aluminum, black anodized
Telescoping Rod:
- Size: 7/8" x 12"
- Material: Steel
Stand:
- Size: 1" x 20"
- Material: 11 gauge steel
Base Construction:
- 3/16" one-piece steel base
- Includes adjustable tripod brace system
INSTALLATION NOTES:
- Position base on floor in desired mounting location
- Secure base using self-tapping tech screws
- Attach vertical tube to mounting post
- Install and adjust tripod braces for support
- Attach swing arm and desktop
- Adjust height and tighten all ratchet handles
⚠️ Safety Guidelines:
- Do not install where it interferes with airbags or vehicle controls
- Ensure all hardware is securely tightened before use
- Do not use laptop while driving—only when parked

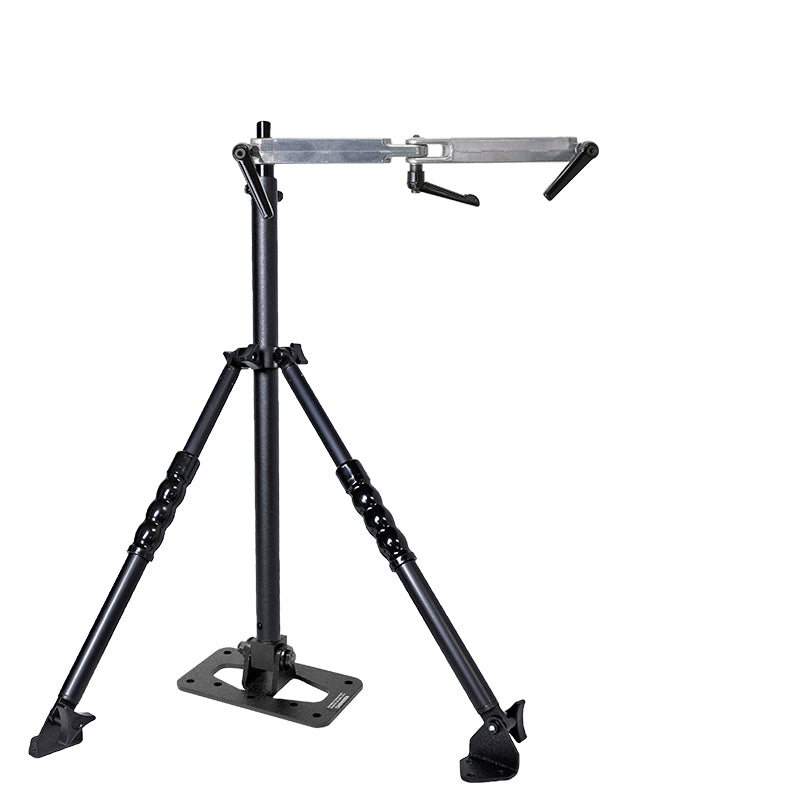

Universal Laptop Mount – Flat Floor Mount with Tripod Support
Description
The Universal Flat Floor Mount Laptop Mount is a heavy-duty, free-standing solution designed for vehicles and work environments where a seat bolt mount is not available or practical.
This system uses a flat floor-mounted base with dual adjustable tripod-style support braces, creating a highly stable platform across uneven, angled, or flat surfaces. It is ideal for utility vehicles, service trucks, vans, and specialty applications requiring flexible installation.
The mount features a telescoping height-adjustable stand and a fully articulated swing arm, allowing complete positioning control. The desktop rotates 360° and adjusts for ergonomic viewing.
The patented ABS Cable-Dock™ system securely holds laptops while allowing airflow and shock absorption for reliable use in mobile environments.
Key Mount Features
- Universal flat floor mount design (not vehicle-specific)
- No Holes base design for structural strength
- Tripod-style dual support braces for maximum stability
- Mounts to flat, angled, or vertical surfaces
- One-piece steel base increases rigidity and frees legroom
- Telescoping height-adjustable stand
- Articulated swing arm with full positioning range
- 360° rotation at both desktop and arm
Specifications & Compatibility
| Height Range | Swing Arm |
|---|---|
| 24 3/4" – 33 1/4" | 13 3/8" |
Mount Type:
- Flat Floor Mount – Universal
Vehicle Fit:
- Universal (Cars, Vans, Trucks, Utility Vehicles)
Height Range:
- 24 3/4" – 33 1/4"
Swing Arm:
- Size: 1" square x 13 3/8"
- Material: Solid aluminum, black anodized
Telescoping Rod:
- Size: 7/8" x 12"
- Material: Steel
Stand:
- Size: 1" x 20"
- Material: 11 gauge steel
Base Construction:
- 3/16" one-piece steel base
- Includes adjustable tripod brace system
INSTALLATION NOTES:
- Position base on floor in desired mounting location
- Secure base using self-tapping tech screws
- Attach vertical tube to mounting post
- Install and adjust tripod braces for support
- Attach swing arm and desktop
- Adjust height and tighten all ratchet handles
⚠️ Safety Guidelines:
- Do not install where it interferes with airbags or vehicle controls
- Ensure all hardware is securely tightened before use
- Do not use laptop while driving—only when parked
